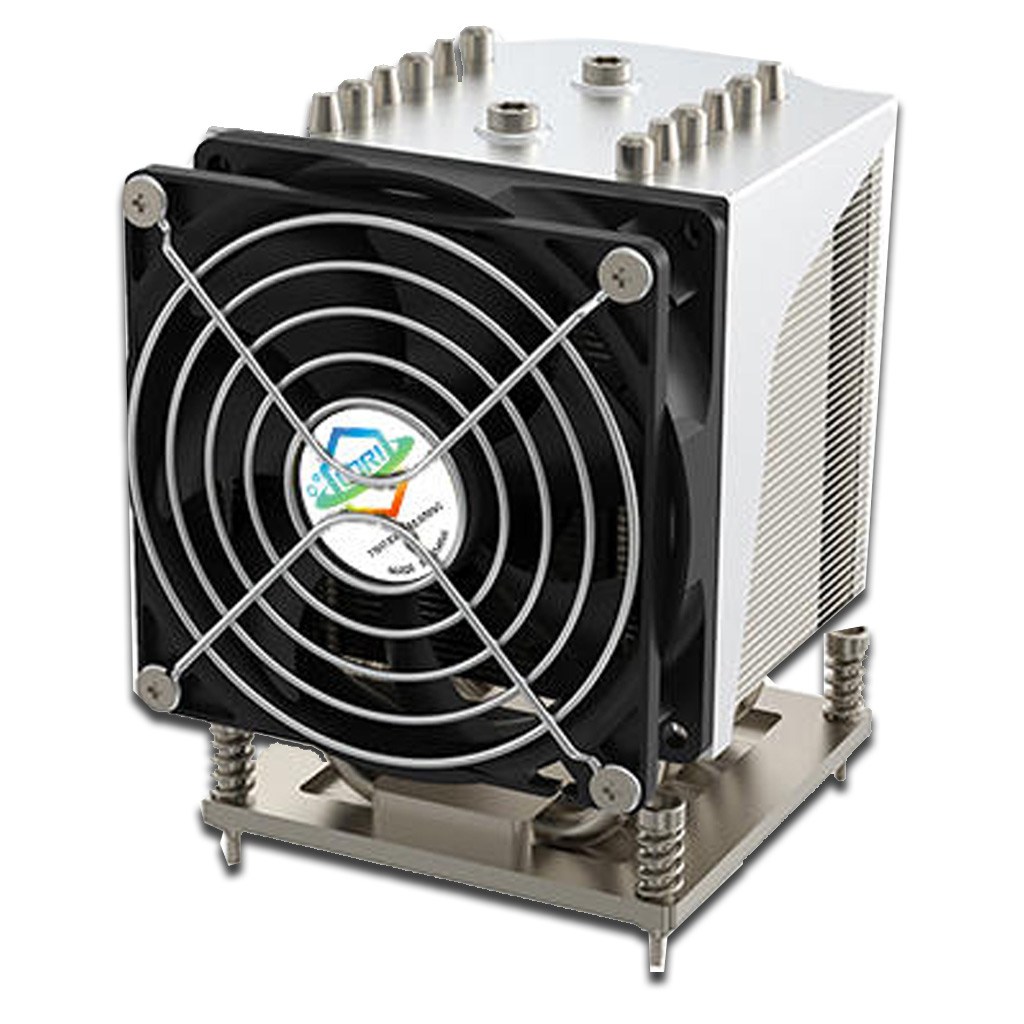

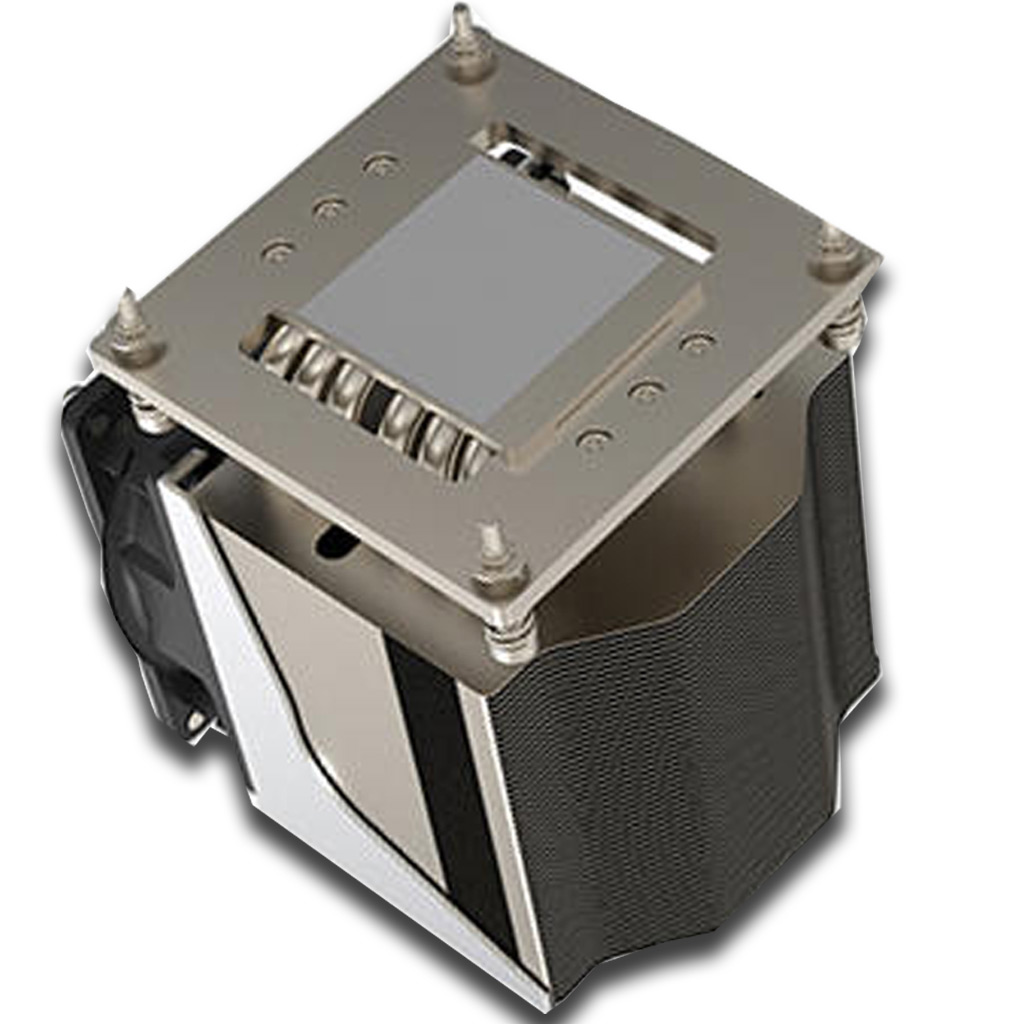

I1700-A4A Heat Sink

Links to Related Products
JYC1B45ATPG
 PS0775-CPR1
 JAC322C
 PS-1366CAR1
 JACLR02C-0
 JAC0R06ATP
 JAC0L04A-D
 JYC0A07ATPTC
 JACLL003C-D
 JAC9B06A-D
 JYC1R04ATPG-0
 JYC1A17ATPTC
 VGC6R01A
 JYC1R38ATPTC
 JAC9L13A-0
 JAC1A21ATPTC-0
 I1200-A1A
 I1200-A1B
 I1200-A1C
 I1200-A2A
 I1200-A2B
 I1200-P1A
 I3647N-P1A
 I3647N-A1A
 I3647N-A2A
 I3647S-A2A
 I3647S-A4A
 I3647N-A4A
 AOSP3-P1A
 AOSP3-A2A
 I2011S-A4A
 I1200-A2C
 I2011N-A2A
 I1700-A1A
 I1700-A2A
 I1700-A1B
 I1700-P1A
 I4189N-A2A
 AOAM4-A2A

SpecificationPrevious Page
Model Name I1700-A4A
Material Alluminium Fins + Alluminium Base + 6 Heat Pipes
Socket Type LGA 1700
Cooler Dimension (L*W*H) 114 * 92.5 * 125.7 mm
TDP 240 W
Fan Speed & CFM 1300 ~ 3800 RPM & 61.46 CFM
Fan Noise and Bearing 40.0 dBA & Two Ball Bearing
Suitable for 4U Active
Connector 4 Pin PWM
