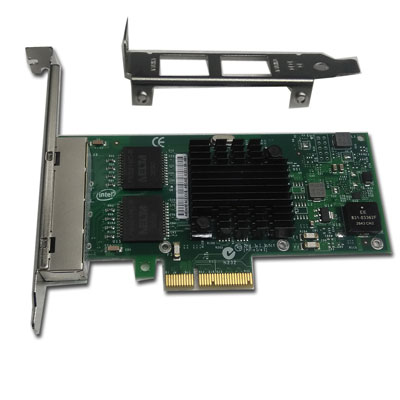

I350-T4X4
Network Cards

Links to Related Products
NW-01PS
NW-02PS
NW-03PS
I350-T2X1
I350-T2X4
X540-T2
X520-SR2
SpecificationNetwork Cards
General
Model Name I350-T4X4     Network Operating Systems (NOS) Software Support
Connector 4 * RJ-45 (Copper)
   Windows Server 2003 SP2
Network Management   Windows Server 2008 SP2)
Wired for Management (WfM) baseline v2.0 enabled for servers   Windows Server 2008 SP2 Core
DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP   Windows Server 2008 SP2 (w/ Hyper-V role)
Remote Installation Services (RIS)   Hyper-V Server 2008 SP2
PXE 2.0 enabled through boot Read-Only Memory (ROM)   Windows Server 2008 R2
Advanced Software Features   Windows Server 2008 R2 Core
Adapter Fault Tolerance (AFT)   Windows Server 2008 R2 (w/ Hyper-V role)
Switch Fault Tolerance (SFT)   Hyper-V Server 2008 R2
Adaptive Load Balancing (ALB)   WinPE 1.6 (2003 PE)
Virtual Machine Load Balancing (VMLB)   WinPE 2.1 (2008 PE)
IEEE 802.3ad (link aggregation control protocol)   Linux* Stable Kernel version 3.X, 2.6, X
PCIe Hot Plug/Active Peripheral   Linux* Stable Kernel version 3.X, 2.6, X
  Component Interconnect (PCI)   Linux RHEL 5.6
IEEE 802.1P VLANs   Linux RHEL 6.1
IEEE 802.3 2005 flow control support   WinPE 3.0 (2008 R2 PE)
Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities Transmission control protocol (TCP), User Datagram Protocol (UDP), Internet Protocol (IP))   Linux SLES 11 SP1YYN
Teaming support   DOS* NDIS 2Yn/an/a
IEEE 802.1p   DOS ODI
TCP segmentation/large send offload UEFI* 2.1
MSI -X: Multiple Independent Queues   UEFI* 2.3
Interrupt moderation   VMware ESX4.03
IPv6 offloading   VMware ESX4.13
  VMware ESX5.03
  Hardware Features   XEN4
Data rate(s) supported per port 100 Mbps, 1 Gbps
Bus Type PCI Express 2.1 (5 GT/s)
Bus width x4 lane PCI Express, operable in x8 and x16 slots
Interrupt levels INTA, INTB, INTC, INTD, MSI, MSI-X
Hardware certifications FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Controller-processor Intel® Ethernet Controller I350
Power Consumption (typical) Copper: 5W
Operating temperature 0 oC to 55 oC(32 oF to 131  oF)
Storage temperature -40 oC to 70 oC(-40 oF to 158  oF)
Storage humidity 90% non-condensing relative humidity at 35 oC
Connect Speed LED indicators Non illuminated=10 Mb/s; green=100Mb/s; amber=1 Gb/s (Copper)
Green=1 Gb/s. Not illuminated=no link (Fiber)
