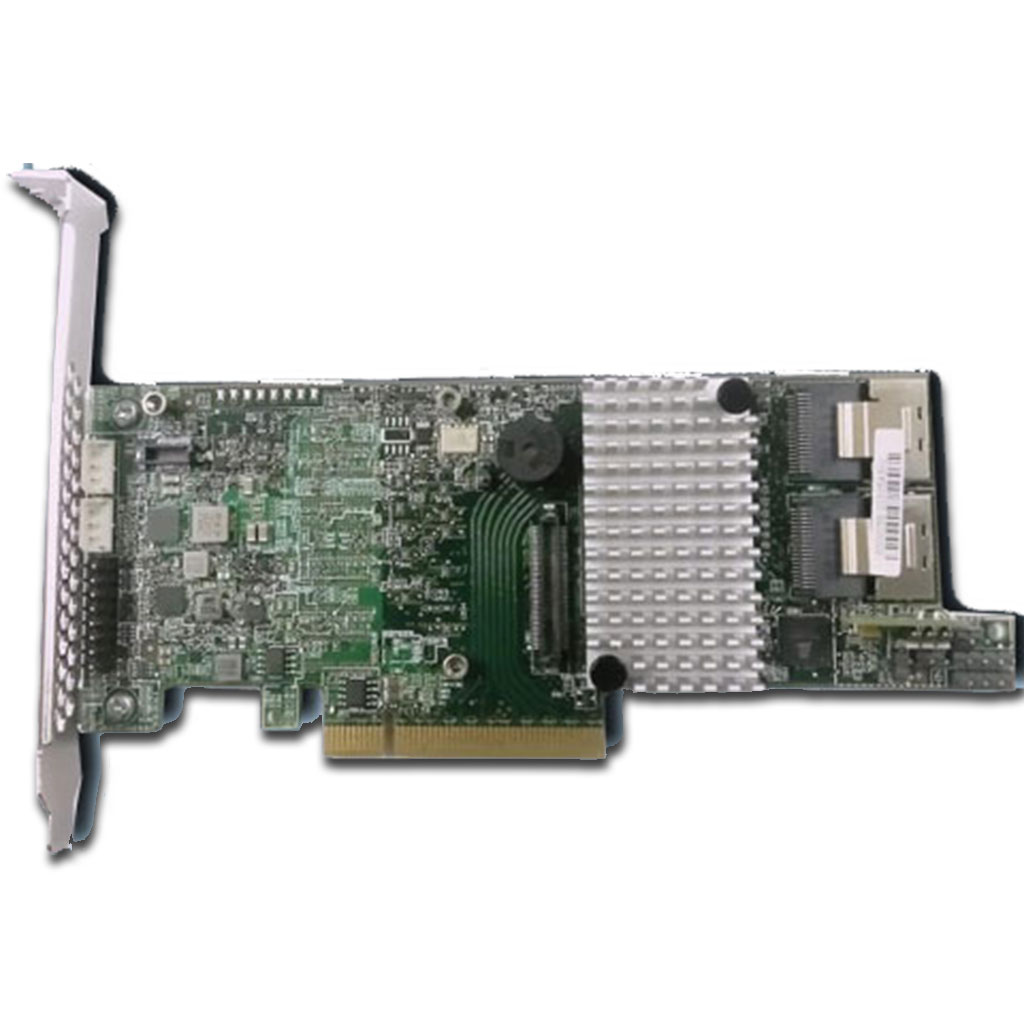

LSI9271-8i - Controller

Specification Previous Page
Features
Host Adapter Architecture		RAID Management Utilities
	PCI Express 3.0x8		Mega CLI (Command Line Interface)
	6 Gb/s 8 SAS/SATA HDD via 2*SFF-8087 Mini-SAS		Mega RAID Storage Manager
	RAID 0,1,5,6,10,50,60		Web BIOS
	1GB 1333MHz DDR II SDRAM	Operating System Support
	Low Profile		Windows Server 2012 RS U1, Server 2016 RS1, Server 2019 RS5; Windows 8, 8.1; Windows 10 RS2
Maintenance and Management Settings			VMWare 6.0 U1, 6.0 U2, 6.0 U3, 6.5, 6.7 U1
	RAID Array Roaming		Solaris 10 and 11, x86 and SPARC
	Unplug/Remove RAID array		Debian 7,8; Citrix 6; OVM 3.3.1, 3.3.3; Fedora 20,22; Ubuntu 14.04,14.05,15.04; OEL 6,7; RHEL 6,7;Cent 6,7; SLES 11,12
	Hot key (ctrl-h) boot-up RAID manager via BIOS	RAID Monitoring Tools
	Firmware update while running the Operating System		SMTP for email notification
	Online Capacity Expansion (OCE)		SES-2 enclosure management (Failed, SMART (SHI))
	Online RAID Level Migration		Enclosure mnaagement support I2C
	Fast Initialization for quick array setup		Event Log
	Automatic drive (insert / removal) detection	Package Contents
	I/O Load Balancing		Controller Card
	Staggered Drive Spinup		Standard & Low Profile Bracket
	Rebuild Priority (Low - Highest)
	Spin Down Idle Mode
	Hot Swap and Hot plug
	S.M.A.R.T Support
	Multiple RAID array
	Multiple Logical Drive
	64bit LBA support greater than 2TB per volume
