RM-42612E

4U Rackmount Chassis

Links to Related Products

RM-1002
RM-1003
RM-1004
RM-1021
RM-1042
RM-13304
RM-13310
RM-13604
RM-238A
RM-2001
RM-2003
RM-2004
RM-2005
RM-2006
RM-2081
RM-2081A
RM-2081B
RMC2108-670-HS
RM-23608
RM-23608-12G
RM-23612
RM-23612-12G
RM-23524
RM-3001
RM-3003
RM-407
RM-4001
RM-4007
IC-610
RM-423
RM-4002
RM-4081
RM-43348
RM-43812E
SpecificationPrevious Page
Model Name RM-42612E
Type 4U Rack Mount
Mother Board Form Factor Ext. ATX - 12" * 13"
Dimension (D*W*H) 660 * 433 * 178 mm
Carton Size 902 * 605 * 335 mm

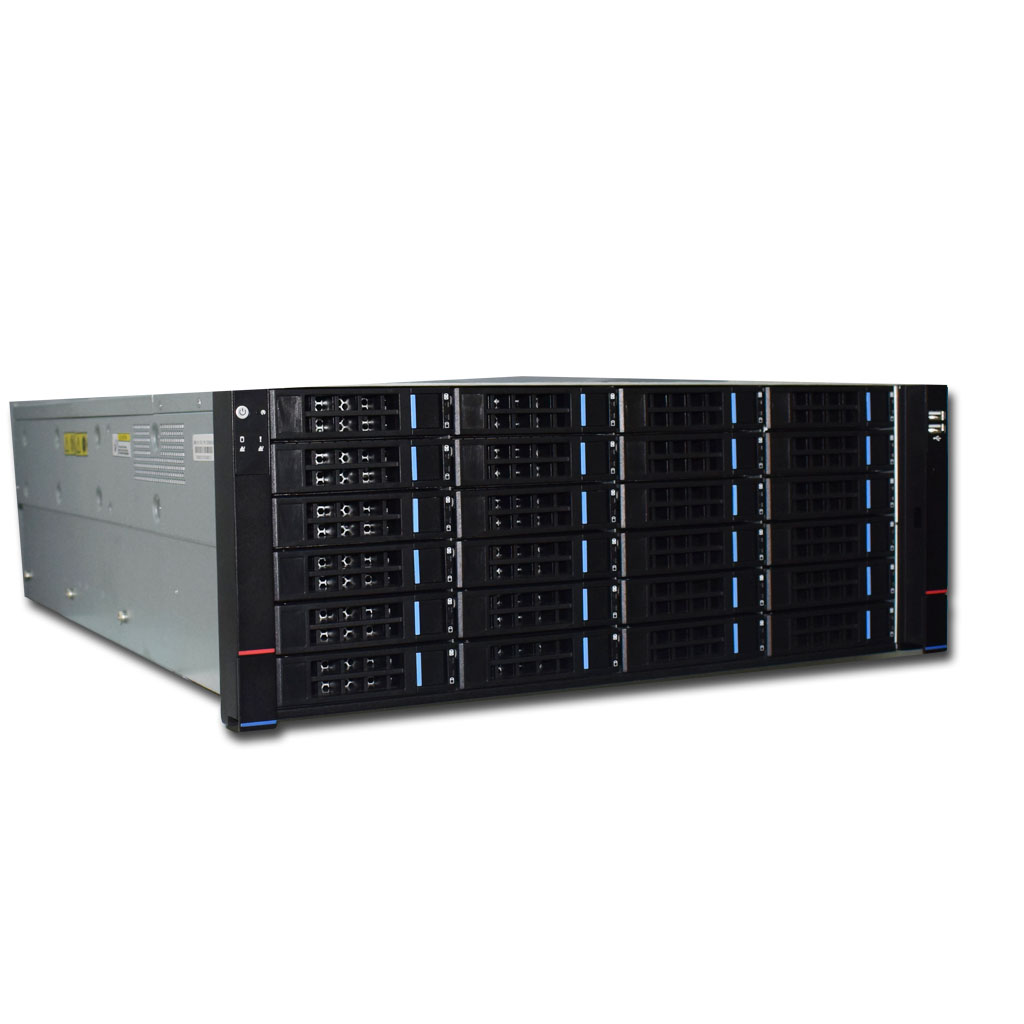

Drive Bays 2.5" / 3.5" SAS / SATA Hot Swap
2.5" SAS / SATA Hot Swap Rear Side
Int 2.5"		 24
  2
  2
Backplane Connector Mini-SAS HD (SFF 8643) with 12G Expander Backplane
Front I/O Ports 2 * USB 2.0

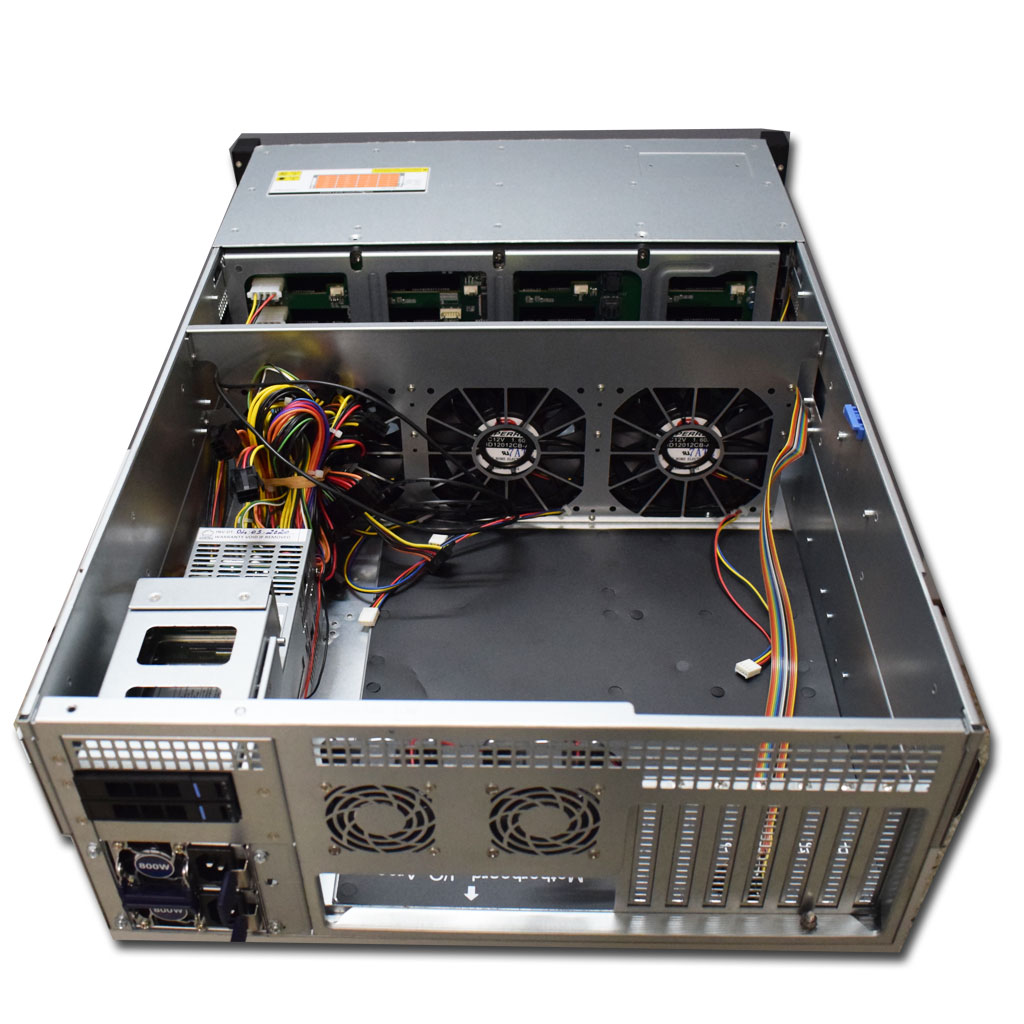

Cooling Fans Standard 3 * 12 cm middle fan,

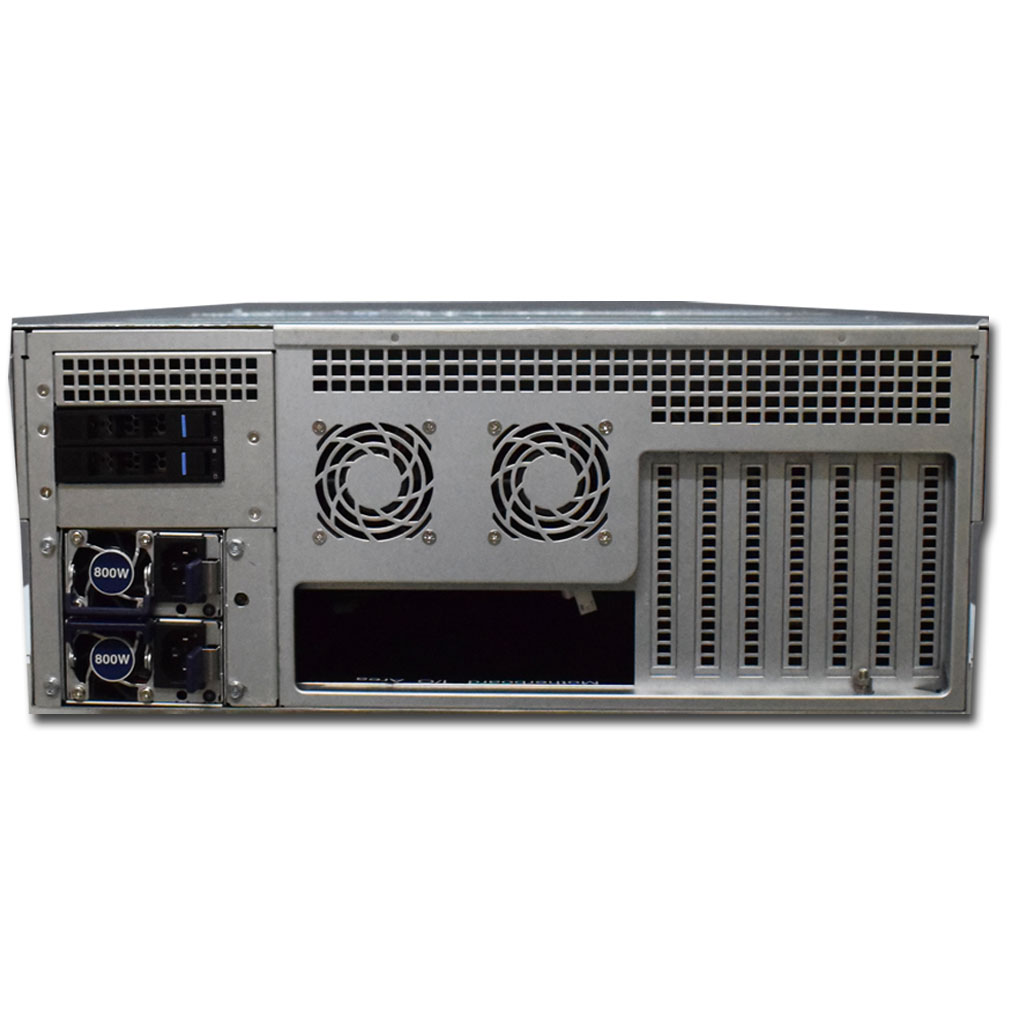

                 2 * 6 cm rear fan
RackMount Kit Standard
Color Black / Silver
Compatible SMPS HydroG-750W
PT-1200FM
FSP2000-52AGPB1
FSP800-50ERS
FSP1200-50ERS
Net Weight 19 KG
