Specification Previous Page |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

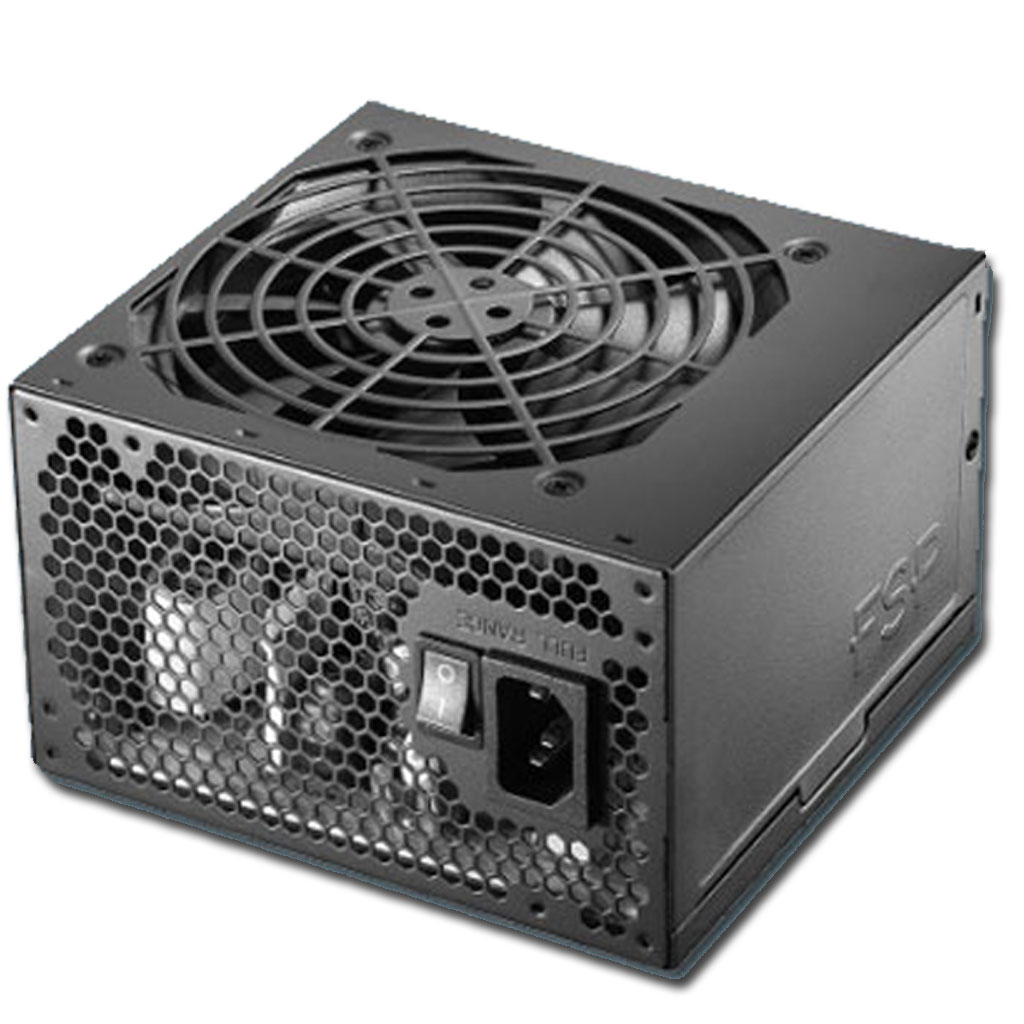

| Model Name | FSP-RA650 | |||||||||
| Size | PS2 Single | |||||||||
| Input Voltage | 100 - 240 V | |||||||||
| Connectors | Mother Board Connector 24 Pins Core Voltage Connector 4+4 Pins PCI Express Connector 6+2 Pins SATA Power Connector 4 Pin Power Connector FDD Power Connector |
- - - - - - |
1 1 2 6 3 1 |
|||||||
| Ampere Rating | Voltage |
Amperage | ||||||||
| +3.3 V +5 V +12 V -12 V +5 VSB |
- - - - - |
25.0A 25.0A 50.0A 0.3A 3.0A |
 |
Max. 150W |
||||||
| Total Output | 650 W | |||||||||
| Compatible Chassis | HP-82 SR-105 SR-108 RM-4001 RM-4007 RM-4002 RM-413 RM-423 SST-GD09B |
|||||||||
