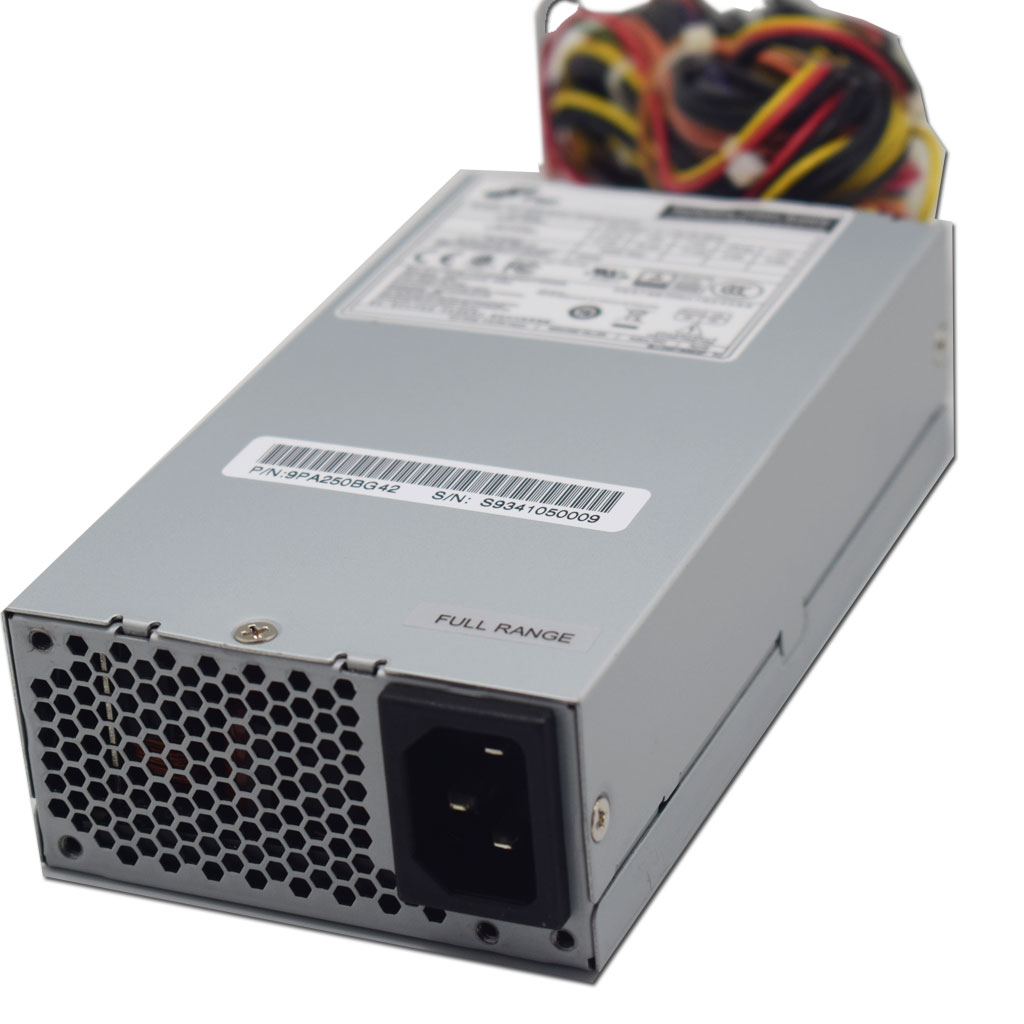

FSP250-50GUB

Entry Level Server Power Supply



Links to Related Products

FSP250-50FEB
 FSP250-51TBC
FSP300-60GHC

SpecificationPrevious Page
Model Name FSP250-50GUB
Size 1U Single
Input Voltage 100 V - 240 V
Connectors Mother Board Connector 20+4 Pins
Core Voltage Connector 4 Pins
SATA Power Connector
4 Pin Power Connector
FDD Power Connector		 -
-
-
-
-		 1
1
1
2
1

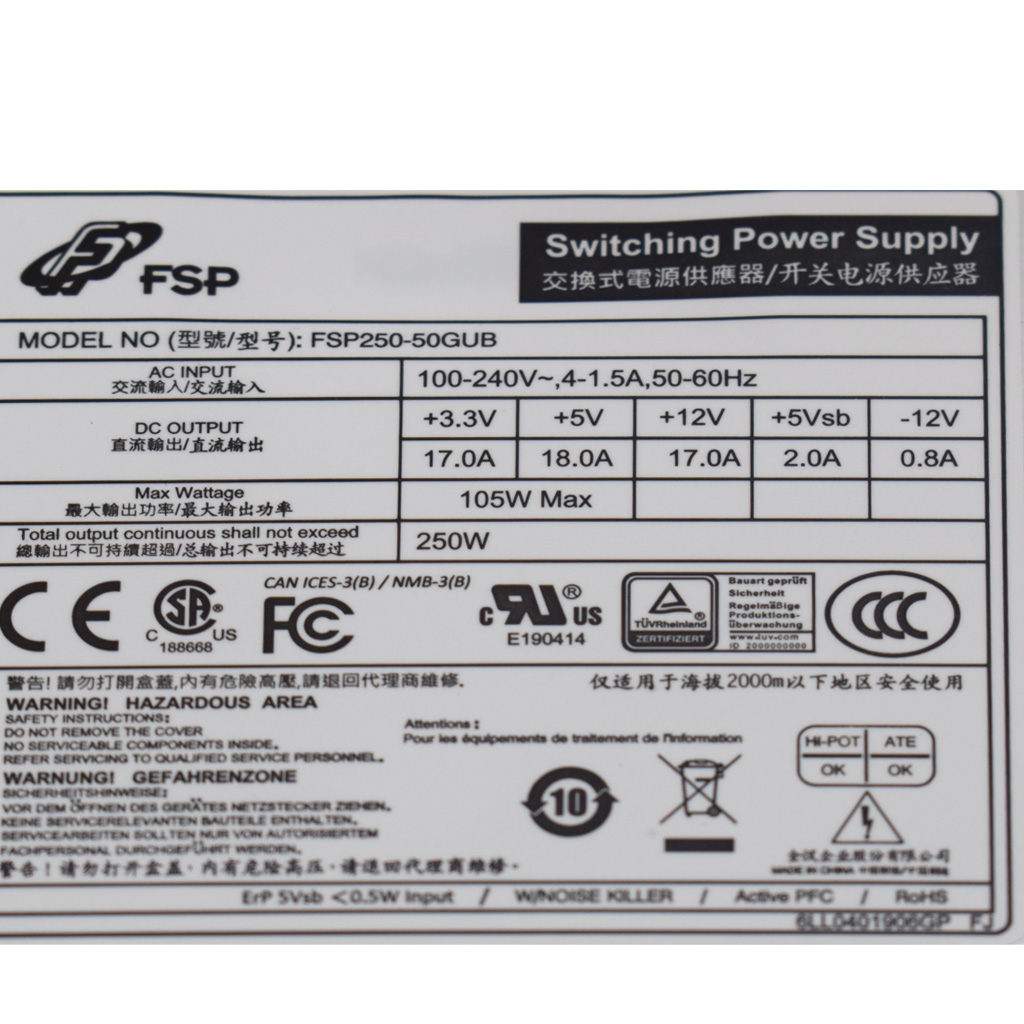

Ampere Rating Voltage
   Amperage
+3.3 V
+5 V
+12 V1
-12 V
+5 VSB		 -
-
-
-
-		 17.0A
18.0A
17.0A
  0.8A
  2.0A


Max.
105W
Total Output 250 W
Compatible Chassis RM-1002
RM-1003
RM-1004
RM-1021
RM-238A
