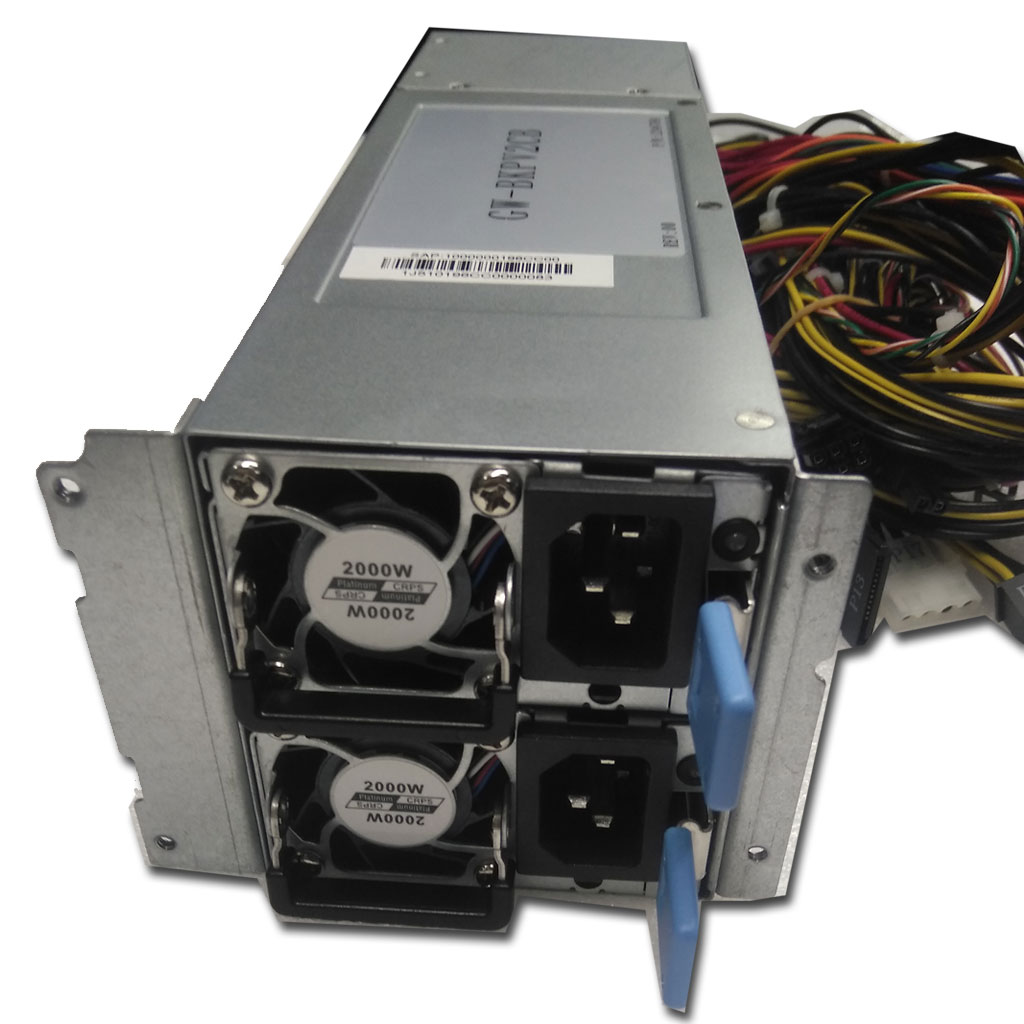

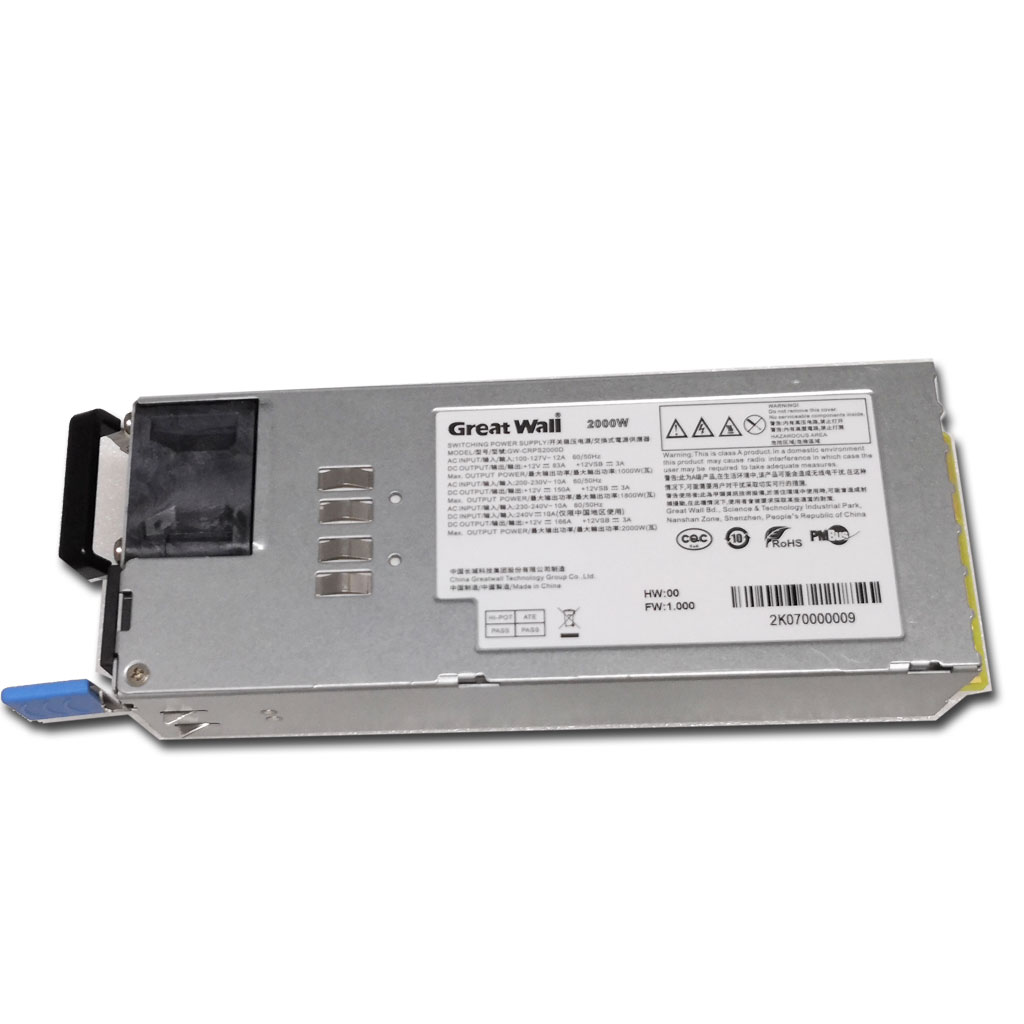

GW-CRPS2000D - Server SMPS

SpecificationPrevious Page
Model Name	GW-CRPS2000D
Size	2U CRPS 1+1
Input Voltage	110 - 240 V AC
Connectors	Mother Board Connector 24 Pins		-	1
	Core Voltage Connector 8 Pins		-	1
	PCI Express Connector 4+4 Pins		-	1
	PCI Express Connector 6+2 Pins		-	8
	SATA Power Connector		-	2
	4 Pin Power Connector		-	4
Ampere and Voltage Rating	+3.3V		-	24.0A	250W
	+5V		-	38.0A	250W
	+12V1		-	83.0A
	+12V2		-	83.0A
	-12V			0.5A
	+5VSB		-	3.0A
Total Output	2000 W
Compatible Chassis	TW-115 TW-125 RM-2003 RM-2081 RM-2081A RM-2081B RM-2082AH RM-2082AN RM-2121B RM-23808 RM-23524	RM-23824 RM-3001 RM-3161B IC-610 RM-4002 RM-4081 RM-4081E RM-4241B RM-4262A RM-6502A RM-6622A
