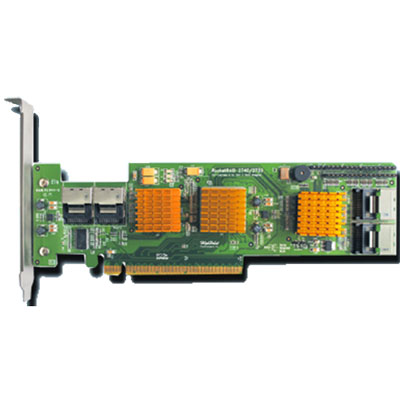

RR-2740 - Controller

Comm

Specification Previous Page

Features

Host Adapter Architecture

Operating System Support

PCI Express 2.0x16

Windows Vista, 2008, 7 (32/64 bit)

Upto 16 SAS/SATA HDD via 4*SFF-8087 Mini-SAS

Linux 1.0

RAID 0,1,5,10,50 and JBOD

FreeBSD 1.4-1.3

Low Profile

RAID Monitoring Tools

Maintenance and Management Settings

SMTP for email notification

RAID Array Roaming

Alarm / Buzzer alerts for drive failure

Unplug/Remove RAID array

SES-2 enclosure management (Failed, SMART (SHI))

Hot key (ctrl-h) boot-up RAID manager via BIOS

Enclosure management support I2C

Firmware update while running the Operating System

Hard Drive LED indicators (Activity and Failed)

Verify RAID Array for Bad Sectors and Parity Check

SHI (Storage Health Inspector - Drive analysis from S.M.A.R.T)

Task Scheduler

Event Log

Automatic RAID rebuild

Package Contents

Automatic drive (insert/removal) detection

Controller Card

Hot Spare Disk

Quick installation guide

Staggered Drive Spinup

Software CD including Drivers, RAID managemnet and User's Guide

Rebuild Priority (Low - Highest)

Supplied with 4 of any one of the following cables

	Mini SAS int to MINI SAS int
	Mini SAS int to 4 * SATA 7 PIN
	Mini SAS int to 4 * SAS 29 PIN + POWER

Spin Down Idle Mode

Operating Voltage

Hot Swap and Hot plug

3.3V (4W max) / 12V (1W max)

Bad sector repair and remapping to reduce dropped drives

Multiple RAID array

Multiple Logical Drive

64bit LBA support greater than 2TB per volume

RAID Management Utilities

Command Line Interface (CLI)

Web browser-base RAID management software

API
