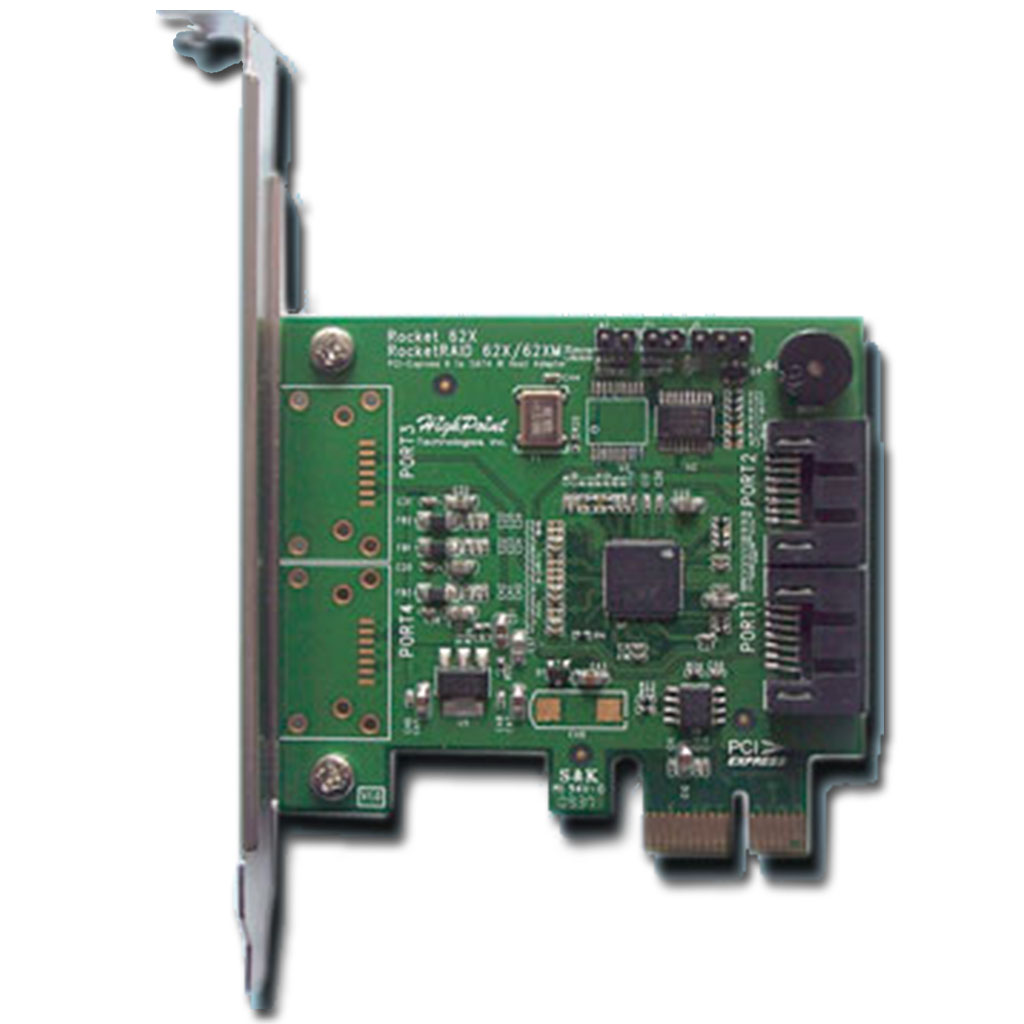

RR-620 - Controller

Specification Previous Page
Features
Host Adapter Architecture		RAID Management Suite
	PCI-Express 2.0x1		Command Line Interface (CLI)
	2 SATA 3.0 port Internal Connector		Web browser-base RAID management software
	Upto 10 SATA Hard Drives using port multiplier		BIOS Management through hotkey
	Low Profile		Monitoring-SHI (Storage Health Inspector) Event Log, SMTP and Alarm
Advanced RAID Features			Quick and Background initialization
	Support RAID 0, RAID 1 Support RAID 0,1,5,10 and JBOD using port multiplier		Boot and data RAID Volume support
	RAID Array Roaming	Operating System Support
	Unplug/Remove RAID array		Microsoft Windows 7-32/64 bit
	Hot key (ctrl-h)boot-up RAID manager via BIOS		Linux (Fedora Core, Red Hat Enterprise / CentOS, SuSE, SLES, Debian, Ubuntu)
	Firmware update while running the Operating System		Mac OS X
	Verify RAID Array for Bad Sectors and Parity Check		Free BSD
	Task Scheduler	Package Contents
	Automatic RAID rebuild		Controller Card
	Automatic drive (insert/removal) detection		Users's Guide
	Hot Spare Disk		Software CD with Drivers and Manual
	Staggered Drive Spinup		Supplied with 2 SATA Cables
	Rebuild Priority (Low - Highest)	Operating Voltage
	Spin Down Idle Mode		PCI-E 3.3V (1W max) / PCI-E 12V (3W max)
	Hot Swap and Hot plug
	Bad sector repair and remapping to reduce dropped drives
	Multiple RAID array
	Multiole Logical Drive
	64bit LBA support greater than 2TB per volume
RAID Monitoring Tools
	SMTP for email notification
	Alarm / Buzzer alerts for drive failure
	Hard Drive LED indicators (Activity and Failed)
	SHI (Storage Heal Inspector - Drive analysis from S.M.A.R.T)
	Event Log
