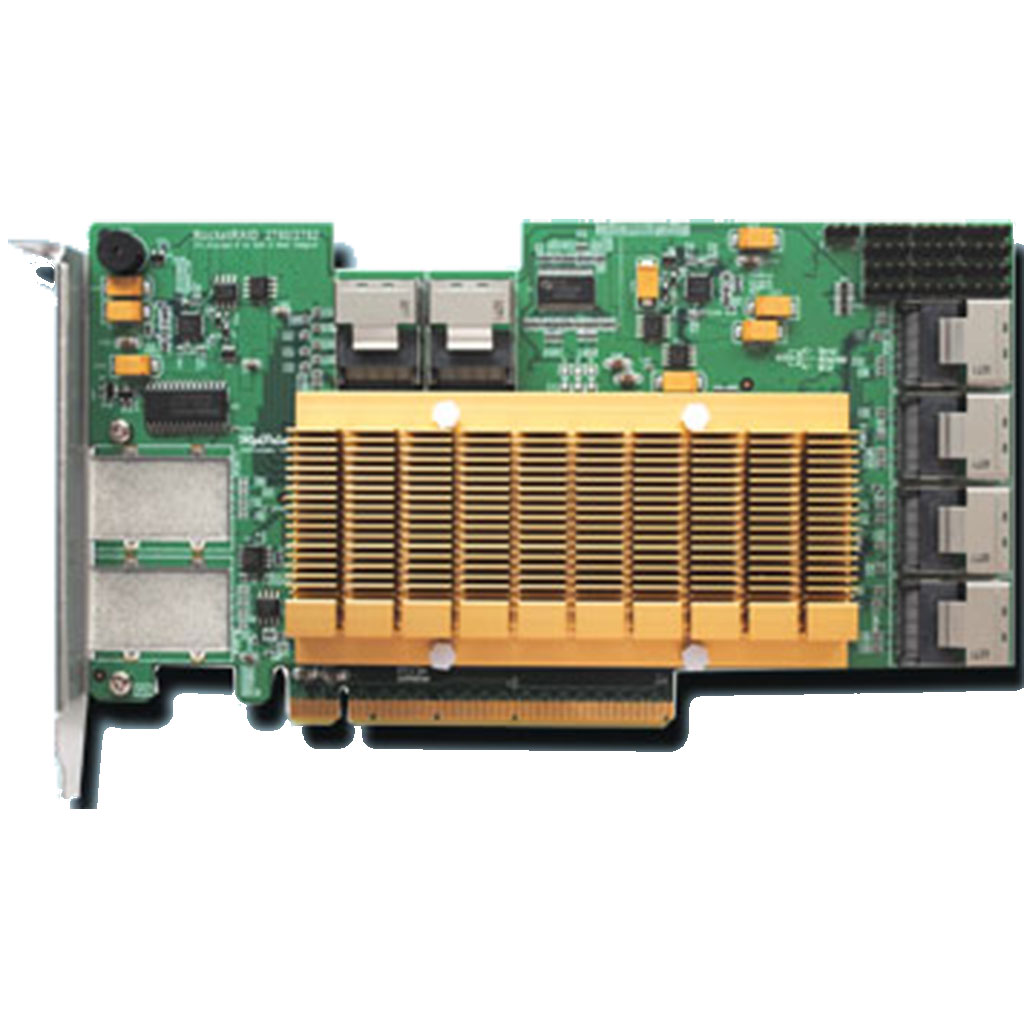

RR-2782 - Controller

Specification Previous Page

Features

Host Adapter Architecture

Operating System Support

PCI Express 2.0x16

Windows Vista, 2008, 7 (32/64 bit)

Upto 24 Internal SAS/SATA HDD via 6*SFF-8087
Upto 8 External SAS/SATA HDD via 2*SFF-8088

Linux 1.0

RAID 0,1,5,10,50 and JBOD

FreeBSD 1.4

Maintenance and Management Settings

RAID Monitoring Tools

SMTP for email notification

RAID Array Roaming

Alarm / Buzzer alerts for drive failure

Unplug/Remove RAID array

SES-2 enclosure management (Failed, SMART (SHI))

Hot key (ctrl-h) boot-up RAID manager via BIOS

Enclosure management support I2C

Firmware update while running the Operating System

Hard Drive LED indicators ( Activity and Failed) (In

Verify RAID Array for Bad Sectors and Parity Check

SHI (Storage Health Inspector - Drive analysis from S.M.A.R.T)

Task Scheduler

Event Log

Automatic RAID rebuild

Package Contents

Automatic drive (insert/removal) detection

Controller Card

Hot Spare Disk

Quick installation guide

Staggered Drive Spinup

Software CD including Drivers, RAID managemnet and User's Guide

Rebuild Priority (Low - Highest)

Supplied with 6 of any one of the following cables

	Mini SAS int to MINI SAS int
	Mini SAS int to 4 * SATA 7 PIN
	Mini SAS int to 4 * SAS 29 PIN + POWER

Spin Down Idle Mode

Hot Swap and Hot plug

Bad sector repair and remapping to reduce dropped drives

Multiple RAID array

Operating Voltage

Multiple Logical Drive

3.3V (4W max) / 12V (1W max)

64bit LBA support greater than 2TB per volume

RAID Management Utilities

Command Line Interface (CLI)

Web browser-base RAID management software

API
