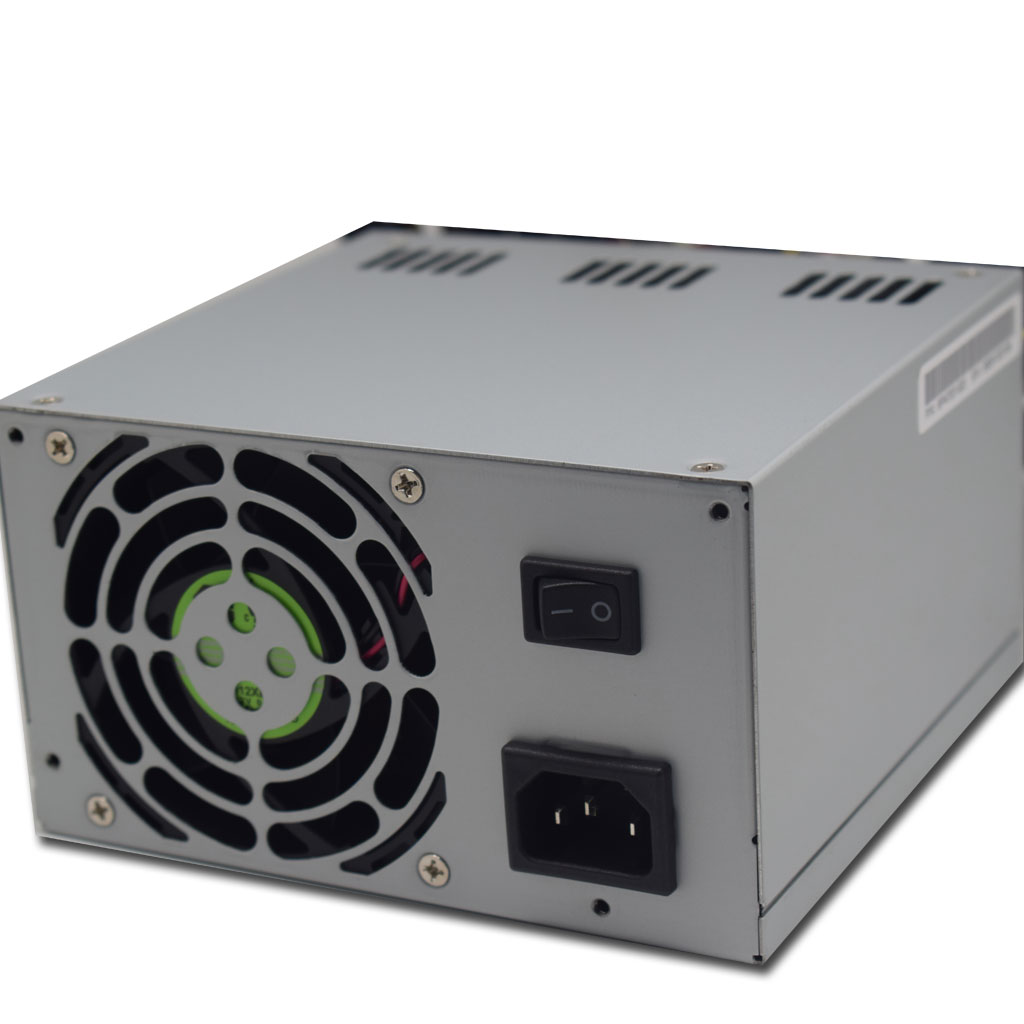

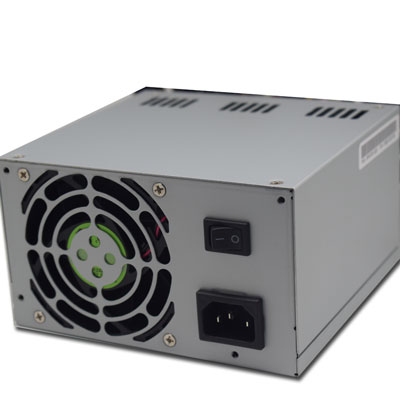

FSP700-80PSA - Single Server SMPS

Specification
Model Name	FSP700-80PSA
Size	PS2 Single
Input Voltage	100 - 240 V
Connectors	Mother Board Connector 24 Pins	-	1
	Core Voltage Connector 8 Pins	-	1
	Core Voltage Connector 4+4 Pins	-	1
	PCI Express Connector 6 Pins	-	2
	PCI Express Connector 6+2 Pins	-	2
	SATA Power Connector	-	8
	4 Pin Power Connector	-	7
	FDD Power Connector	-	1

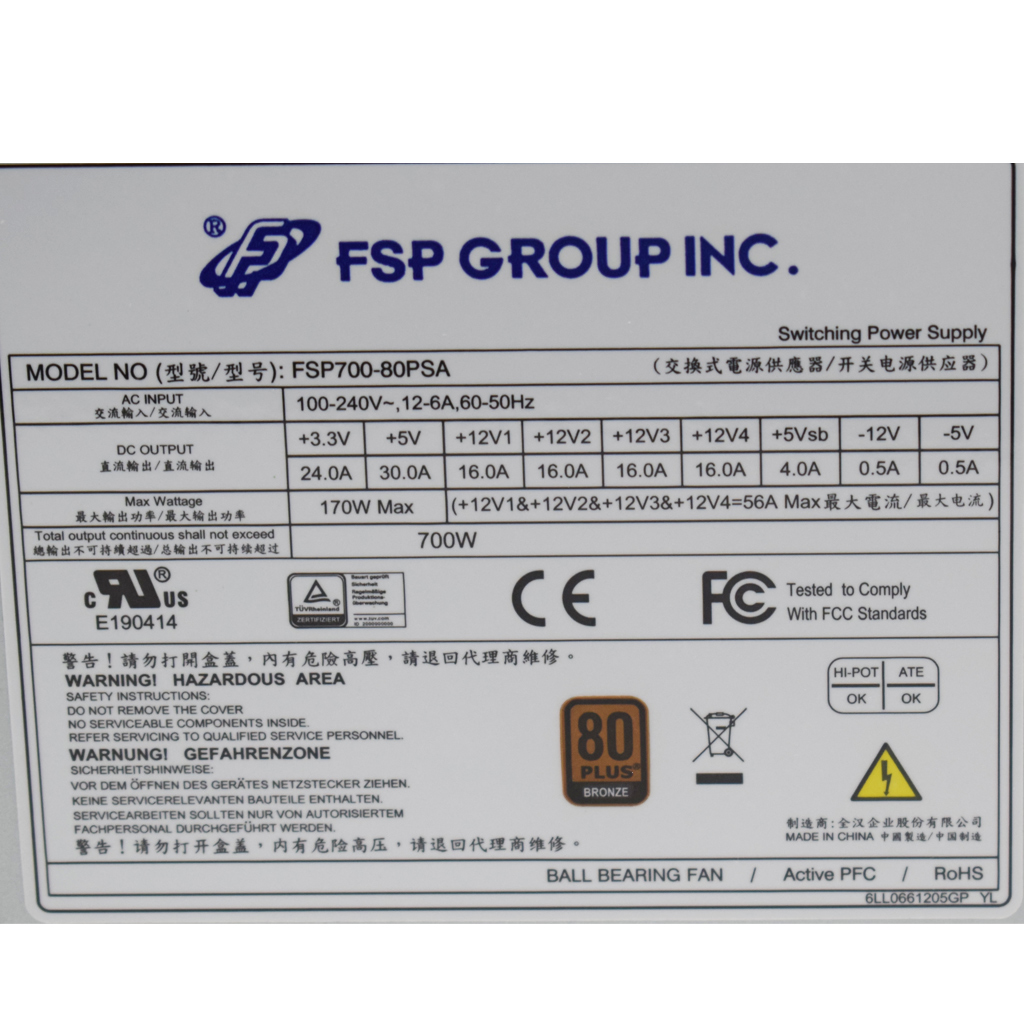

Ampere Rating	Voltage		Amperage
	+3.3 V	-	24.0A	Max. 170W
	+5 V	-	30.0A	Max. 170W
	+12 V1	-	16.0A	Max.56A
	+12 V2	-	16.0A
	+12 V3	-	16.0A
	+12 V4	-	16.0A
	+5 VSB	-	4.0A
	-12 V	-	0.5A
	-5 VSB	-	0.5A
Total Output	700 W
Compatible Chassis	SR-105 SR-108 TW-115 RM-2001 RM-2003 RM-2004 RM-2005 RM-3001 RM-3003 RM-4001 RM-4002 SST-GD09B
