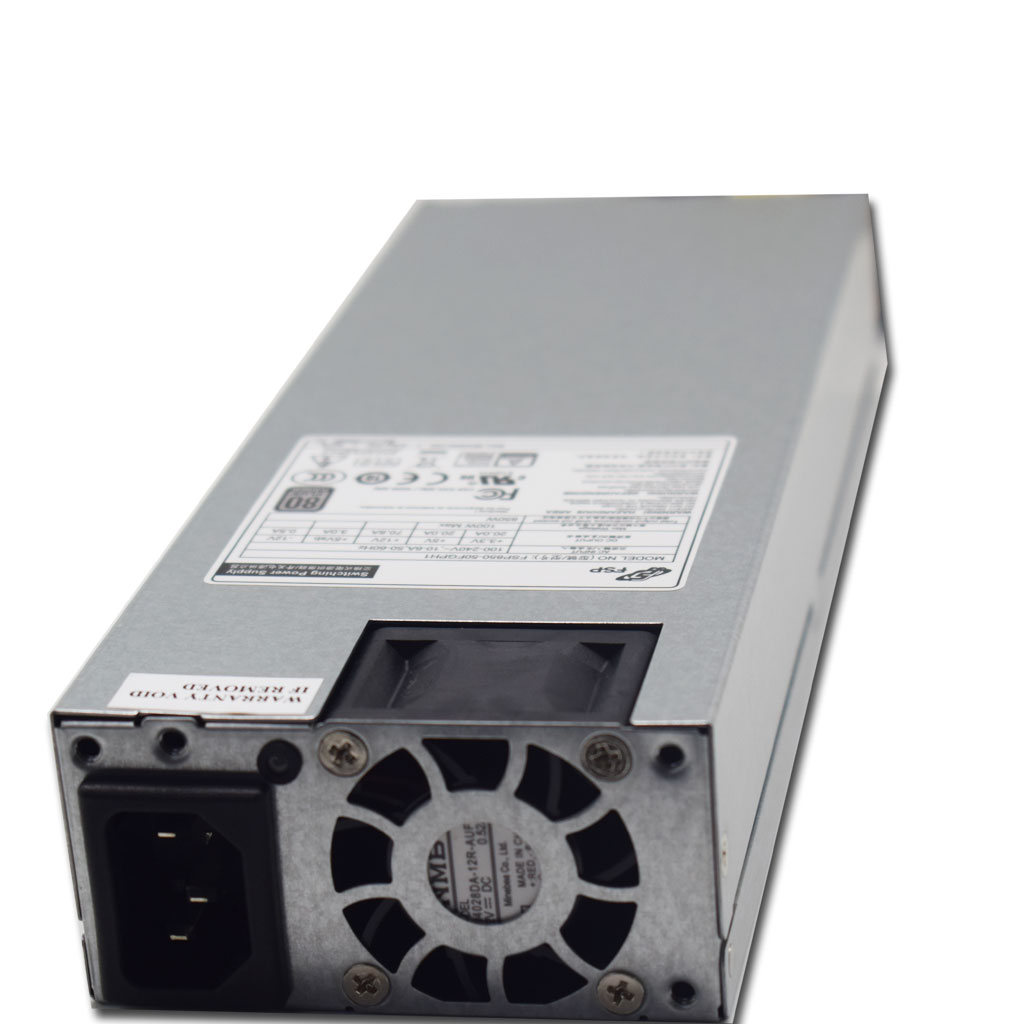

FSP850-50FGPH1 - Server SMPS

Specification Previous Page
Model Name	FSP850-50FGPH1
Size	1U Single / Flex ATX
Input Voltage	100 - 240 V
Connectors			Opt1	Opt2
	Mother Board Connector 20+4 Pins	-	1	1
	Core Voltage Connector 8 Pins	-	1	1
	Core Voltage Connector 4+4 Pins	-	1	1
	PCI Express Connector 6+2 Pins	-	0	1
	PCI Express Connector 6 Pins	-	0	1
	SATA Power Connector	-	4	6
	4 Pin Power Connector	-	4	6
	FDD Power Connector	-	1	1

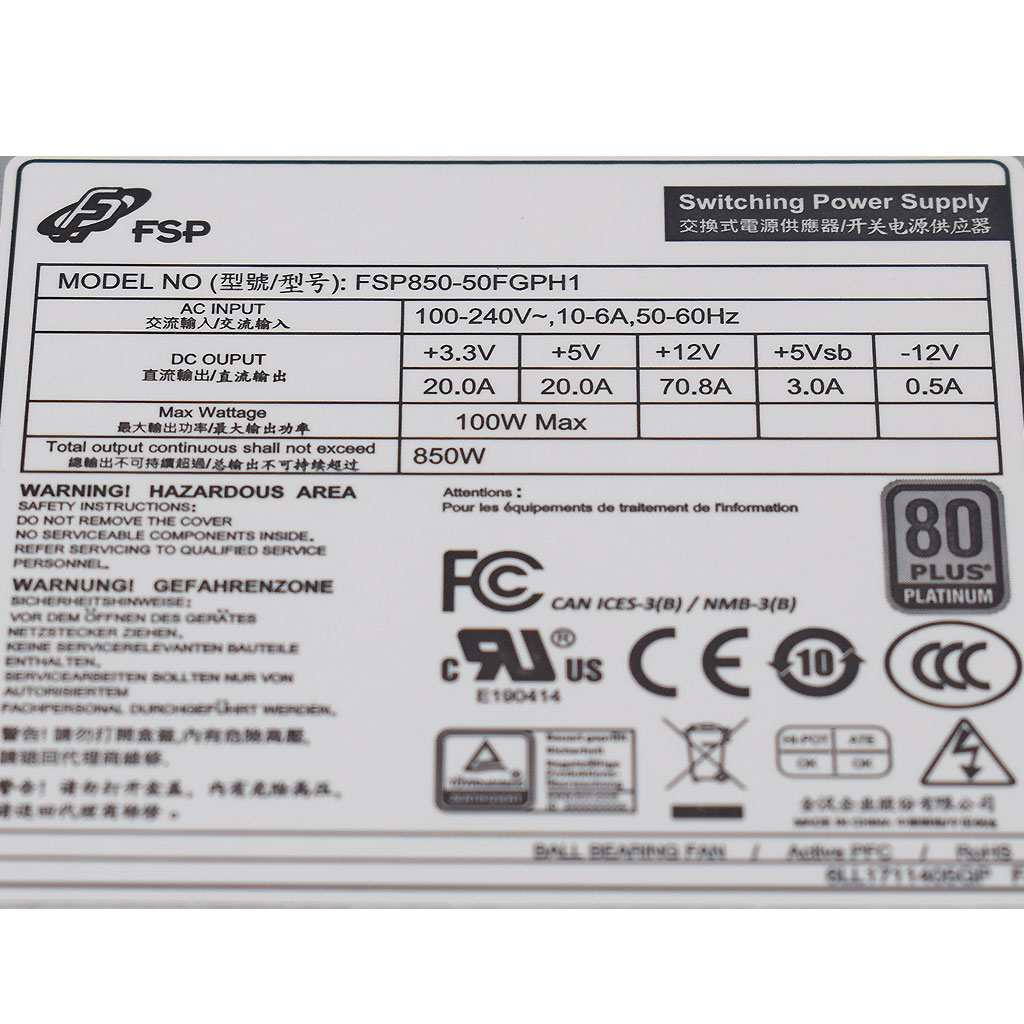

Ampere Rating	Voltage		Amperage
	+3.3 V	-	25.0A		Max. 100W
	+5 V	-	25.0A		Max. 100W
	+12 V	-	70.0A
	-12 V	-	0.5A
	+5 VSB	-	3.0A
Total Output	850 W
Compatible Chassis	RM-1004 RM-1021 RM-160 RM-13604 RM-2003 RM-3001
